VENTILATORS

Ventilators bring fresh air into your home without losing heating or cooling energy. Their unique energy exchange system transfers the heating or cooling energy from the stale air being exhausted from your home to the fresh air the ventilator brings into your home.

If your family suffers from allergies, ventilators are a much better alternative for introducing fresh air into your home versus opening your windows. They also do a great job of reducing cooking and pet odors, smoke and other pollutants out of your home.

HOW IT WORKS:

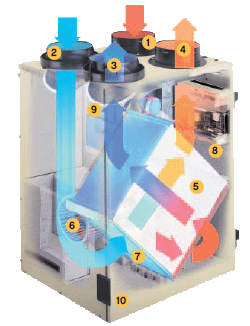

Venilator diagram
  1. Internal air intake - draws in stale indoor air, directing it through the heat exchanger core.
  2. External air intake - draws outside air, venting it through the air filter.
  3. Internal air exhaust - vents indoor air outside from the heat exchanger core. Up to 84% of the indoor heat has been removed, helping minimize utility costs.
  4. Fresh air exhaust - vents conditioned, heated outdoor air into your living areas.
  5. High efficiency heat recovery core - extracts heat from stale indoor air and transfers it to fresh outdoor air for maximum comfort with little heat loss. This core also removes excess humidity from recirculated air - lower humidity levels help you stay comfortable at higher temperatures in the summer and lower temperatures in the winter.
  6. Ventilator motor - moves air through the system efficiently and quietly.
  7. Air filter - cleans outdoor air of small particles before they circulate through your home.
  8. Electronic circuit board - adjusts air circulation modes and motor speeds.
  9. Damper defrost - helps prevent frost from forming within the system, eliminating the need for a supplemental energy -consuming electric defroster. This defroster engages when temperatures drop below 23 degrees Fahrenheit.
  10. Briefcase-style exterior latches - allow easy filter changes with no tools required.
  11. Simple wall control - makes operating the HRV easy and convenient.

VENTILATOR PRODUCT OFFERING

Cleancomfort logo

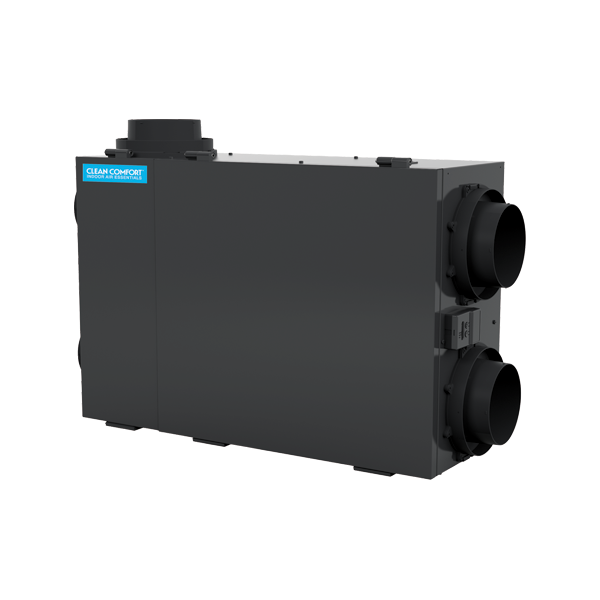

Amana hrv ventilator

HEAT RECOVERY VENTILATOR - HRV SERIES

View Brochure
Model Family: VH30100
Airflow: Three operating modes (Intermittent, Continuous and High)
Sound Level: Quiet operation
Warranty: 5-Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • 100% variable speed
  • ISF™ (Insert, Slide and Fix) 6
  • Advanced proportional supply fan shut-down defrost sequence
  • Single-person mounting system via wall bracket
  • Dual permanently lubricated PSC motors
  • Integrated auxiliary furnace interlock relay
  • Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
  • Connection terminals for optional wall controls
  • Wall-mount bracket included
Amana hrv ventilator

HEAT RECOVERY VENTILATOR - HRV SERIES

View Brochure
Model Family: VH30160R
Airflow: Four operating modes (Intermittent, Continuous, Recirculation and High)
Sound Level: Quiet operation
Warranty: 5-Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • 100% variable speed
  • ISF™ (Insert, Slide and Fix) 6
  • Advanced proportional supply fan shut-down defrost sequence
  • Single-person mounting system
  • Dual permanently lubricated PSC motors
  • Integrated auxiliary furnace interlock relay
  • Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
  • Connection terminals for optional wall controls
  • Wall-mount bracket included
Amana erv ventilator

ENERGY RECOVERY VENTILATOR - ERV SERIES

View Brochure
Model Family: VE30100
Airflow: Three operating modes (Intermittent, Continuous and High)
Sound Level: Quiet operation
Warranty: 5-Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • Dual permanently lubricated PSC motors
  • Connection terminals for optional wall controls
  • Wall-mount bracket included
  • Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
  • Integrated balancing pressure taps
  • Integrated auxiliary furnace interlock relay
  • Single-person mounting system via wall bracket
  • Advanced proportional supply fan shut-down defrost sequence
  • ISF™ (Insert, Slide and Fix) 5
  • 100% variable speed

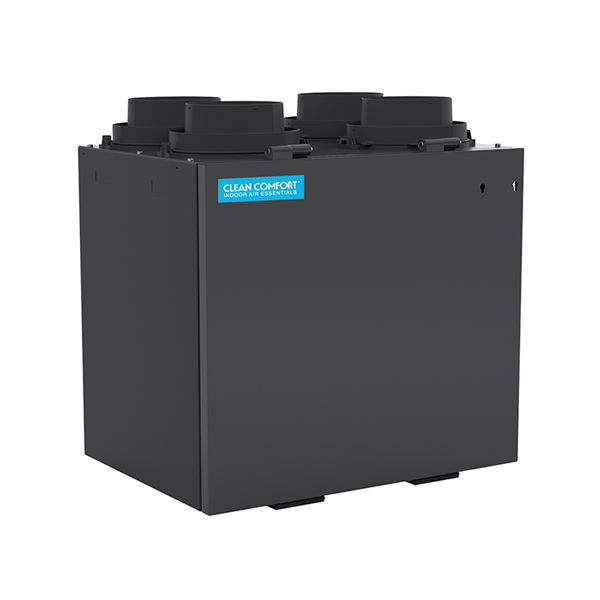

Amana erv ventilator

ENERGY RECOVERY VENTILATOR - ERV SERIES

View Brochure
Model Family: VE30160
Airflow: Three operating modes (Intermittent, Continuous and High)
Sound Level: Quiet operation
Warranty: 5-Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • ISF™ (Insert, Slide and Fix) 5
  • Dual permanently lubricated PSC motors
  • 100% variable speed
  • Advanced proportional supply fan shut-down defrost sequence
  • Integrated auxiliary furnace interlock relay
  • Single-person mounting system via wall bracket
  • Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
  • Connection terminals for optional wall controls
  • Wall-mount bracket included
  • Integrated balancing pressure taps
